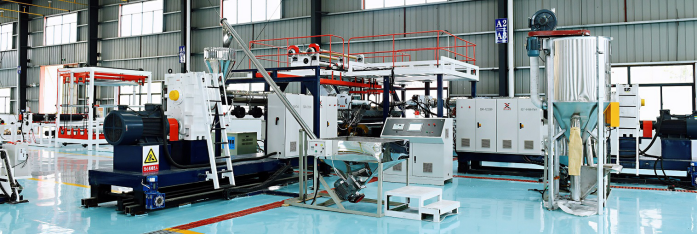

ZSHC2300 PE TPO EVA Waterproof Membrane Production Line was ordered and delivered in 2024, used for waterproof membrane production.
General:
Application Conditions: 380V/3P/50Hz
Material: PE, TPO, EVA pellet
Product Width (Effective Width after Edge Trim): 2000mm
Capacity: 600-700kg/h
Components List:
1. SJ120/30 single screw extruder * 2 (reserved heating 17 zones / piece)
2. L2300 die & screen changer * 2
3. 1t dryer * 2
4. 800kg feeder * 2
5. horizontal three-roll calender unit * 1
1）front cladding device
2) three-roll temperature control (3 pieces / set, water temperature control)
3) cooling frame
4) edge trim (slitting)
5) tractor
6) material accumulator
7) vertical correction
8) winder
9) electric control system
